Lenovo Docking Station ThinkPad USB-C LDA-KP Dock with 90W Power Supply

This Lenovo USB-C Dock Gen 2 (Model LDA-KP ) delivers seamless multi-monitor support, fast charging, and enterprise-grade features. Supplied with Lenovo 90W Slim Tip adapter, UK mains plug, fully tested and ready to ship.

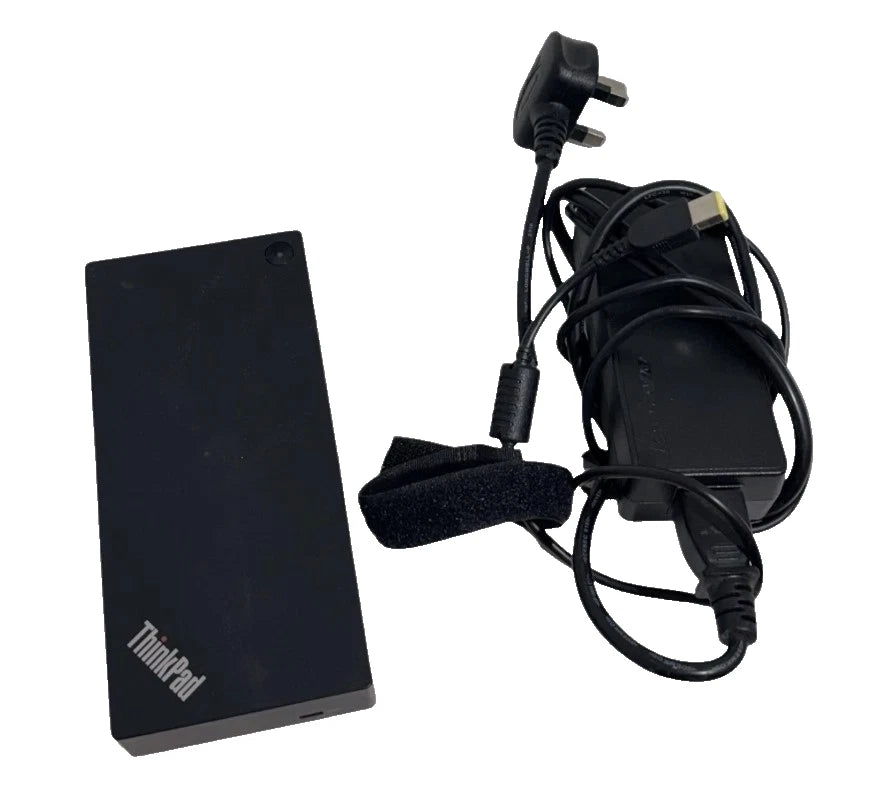

📘 What’s Included

• Lenovo len-LDA-KP USB-C Dock

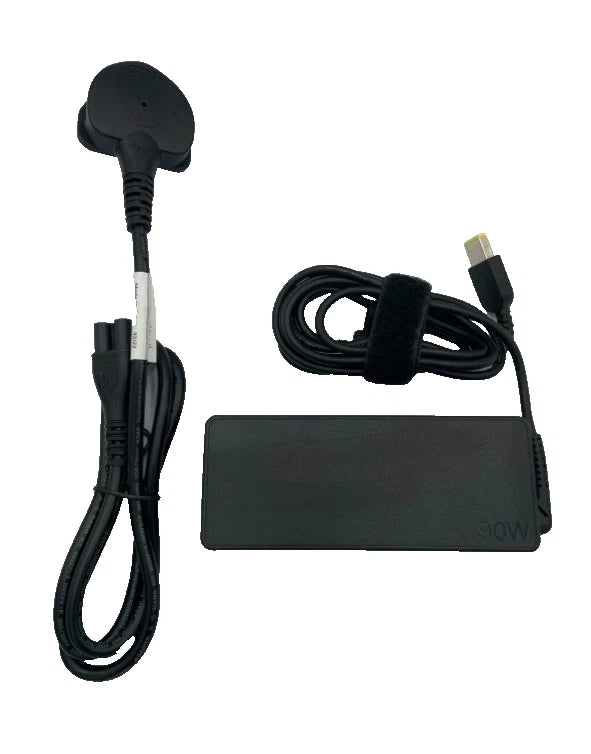

• Lenovo 90W Slim Tip Power Supply
• UK 3-pin mains plug

🔧 Key Features

• Supports up to 3 external monitors
• Max Resolution: 3840×2160 @ 60Hz
• Video Output Configurations:
  • One: 4K @ 60Hz
  • Two: 4K @ 60Hz each (requires 2-lane HBR3 with MST + DSC 3:1)
  • Three: 2 × 4K @ 60Hz + 1 × 4K @ 30Hz (same requirements)
• Power Delivery: 65W output with included 90W adapter
• Enterprise Features: PXE boot, Wake-on-LAN, MAC address pass-through
• Security: Dual security lock slots

🖥️ Broad Compatibility

• Works with USB-C laptops supporting DisplayPort Alt Mode
• Compatible with Windows, macOS, Chrome OS
• Optimized for Lenovo ThinkPad systems

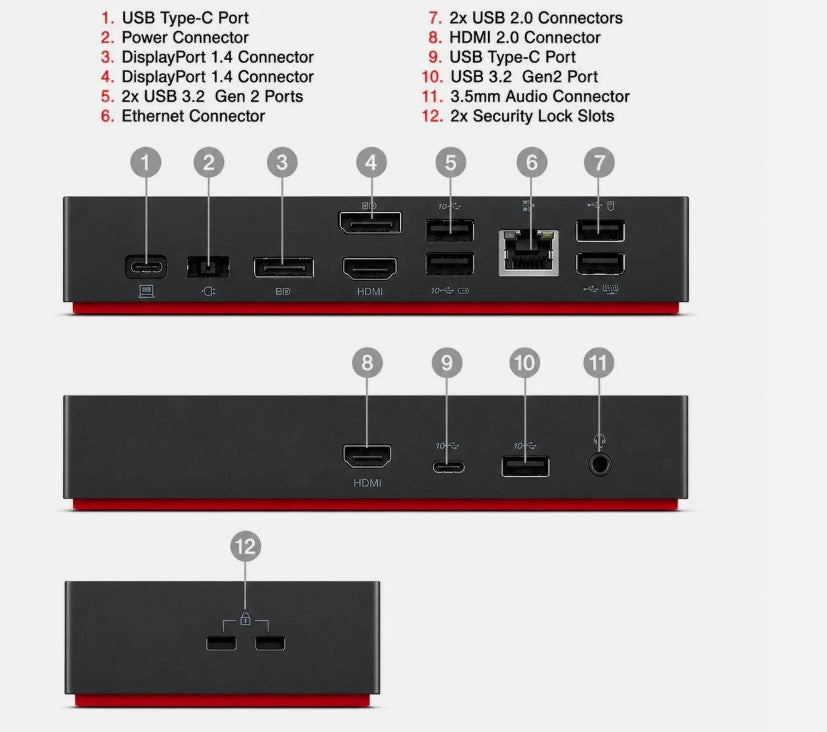

🔌 Port Overview

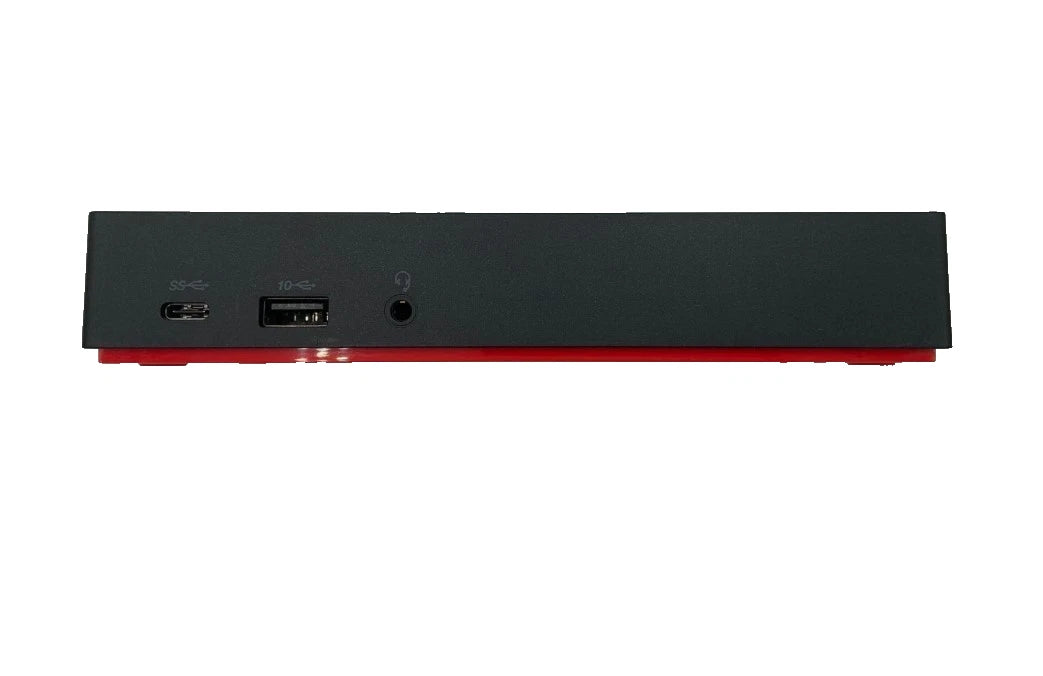

Front Ports:

• 1 × USB-C 3.2  (Data/Peripherals)
• 1 × USB-A 3.2
• 1 × Combo Audio Jack (3.5mm)

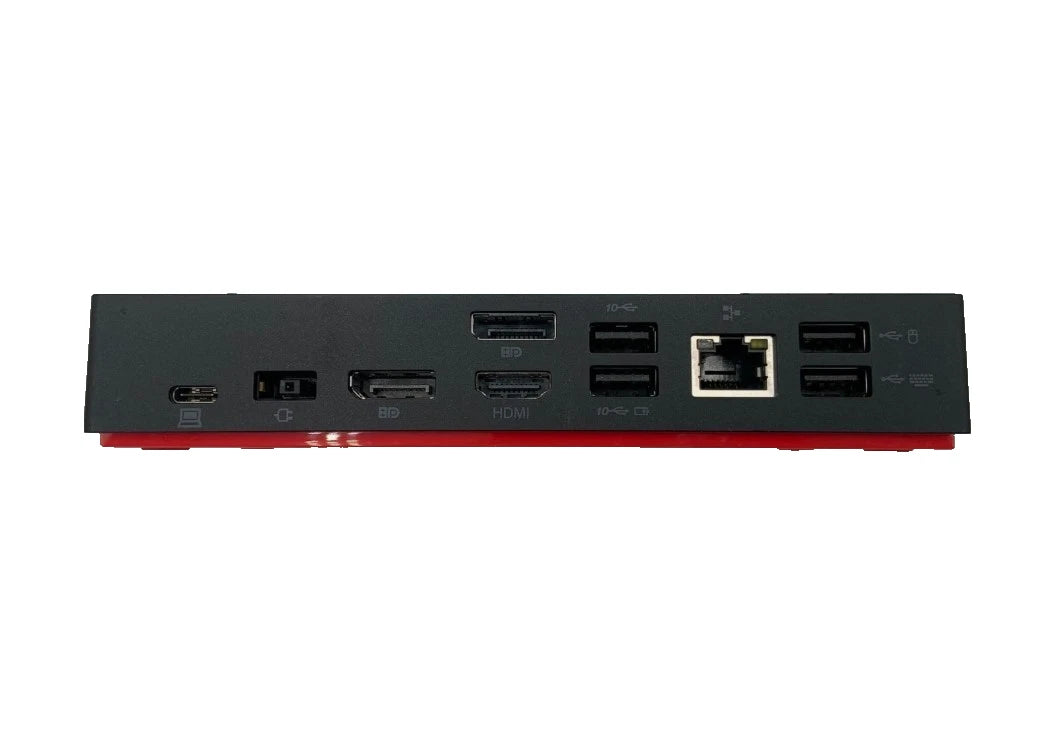

Rear Ports:

• 2 × DisplayPort 1.4
• 1 × HDMI 2.0
• 2 × USB-A 3.2 Gen 2
• 2 × USB-A 2.0
• 1 × Gigabit Ethernet (RJ-45)
• 1 × Slim Tip power input
• 1 × USB-C (Upstream to Host Laptop)
